Dettagli dei prodotti

Casa prodotti

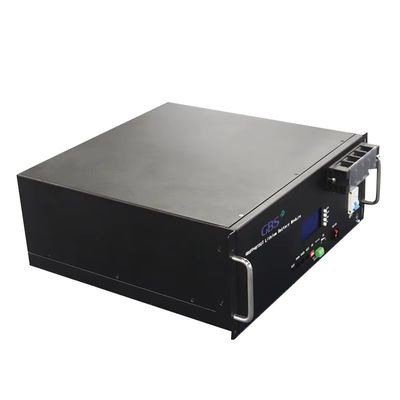

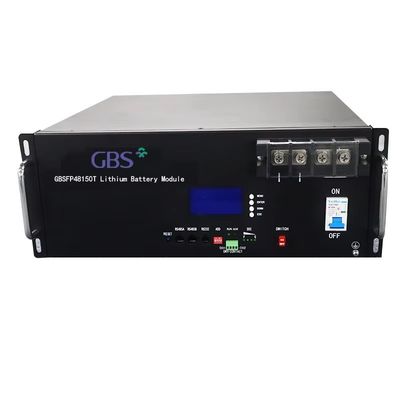

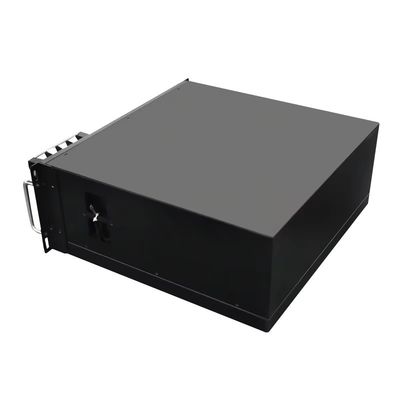

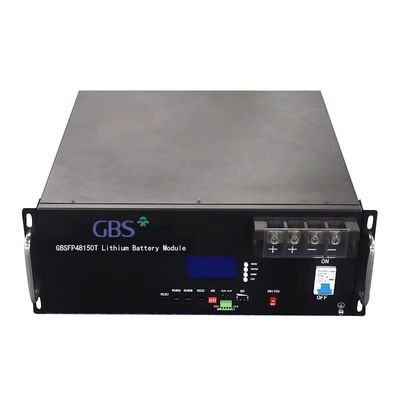

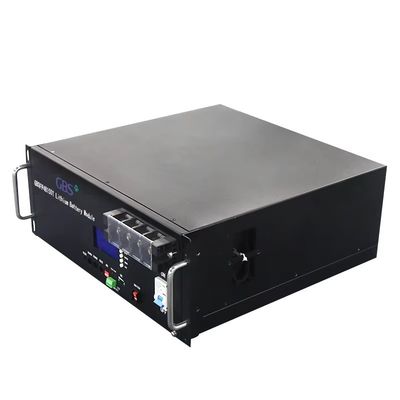

48V 51.2V 15S 16S 150Ah LFP Battery Moudle 3U 4U 5U for Telecom Base Station Lithium Ion Battery Pack

Marchio:	GBS
Numero di modello:	GBSFP48150T
MOQ:	1 pezzi
prezzo:	negotiable
Capacità di approvvigionamento:	2000000 pezzi all'anno

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Tipo di cella della batteria:

LifePo4

Capacità della batteria:

150ah

Vita ciclo:

3000 cicli

Colore:

Nero o personalizzato

Garanzia:

5 anni

Applicazione:

Stazione base di telecomunicazione, batterie di backup delle telecomunicazioni

Imballaggi particolari:

Merci pericolose confezionate in scatole di legno

Misurare:

3u, 4u, 5u o personalizzato

Imballaggi particolari:

Merci pericolose confezionate in scatole di legno

Capacità di alimentazione:

2000000 pezzi all'anno

Evidenziare:

Descrizione di prodotto

48V 51.2V 15S 16S 150Ah LFP Battery Module 3U 4U 5U for Telecom Base Station Lithium Ion Battery Pack

Product Overview

Key Features

High efficiency output: Standard discharge current 0.3C-0.8C, instant impulse discharge current 10C for 10 seconds
High temperature performance: Operates reliably at up to 65°C with safe battery structure
Low temperature performance: Maintains over 78% discharge capacity at 0°C and over 70% at -20°C
Advanced safety: One-way safety valve prevents burning/explosion by releasing excess gas and heat
Extended cycle life: Maintains over 80% discharge capacity after 2000 cycles at 80% DOD
Fast charging: 80% charge in 20 minutes, full charge in 2-3 hours
Cost-effective: Low maintenance requirements with excellent ROI
Eco-friendly: No pollution during manufacture or usage

Installation & Usage Guidelines

Verify all components upon unpacking and review operation manual carefully
Avoid short circuits, overcharging, and over-discharging
For first use, fully charge before initial discharge
Do not remove factory-installed plates and strips
Standard voltage range: 12.8V-13.2V (verify before installation)
Always use the included Battery Management System (BMS)
Battery connectors use rivets or screws for secure attachment
Use copper components for inter-battery connections with hydraulic pressure pliers
Only use company-approved chargers designed specifically for these batteries

Failure to follow these guidelines may void warranty coverage and reduce battery lifespan

Safety Assurance Requirements

For optimal safety and performance, please consult with our technical team regarding:
